Single, slide-switch control microphone for easy use
10 one-touch programmable dialers
Auto-log feature can automatically run a dialer upon powering on
Internal battery backup retains programming even with loss of power
Record indication light on the microphone turns red when in record mode
Built-in volume and tone controls
Speaker for playback on station as well as microphone
Compatible as a C-Phone® plug-n-play replacement
Compatible with Dolbey Fusion, DVI, Winscribe & Voice Solutions systems
Package Contents

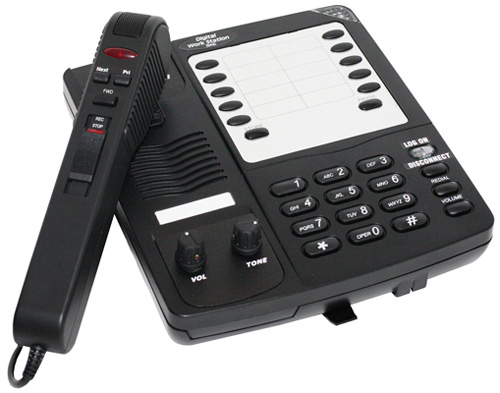

DA-113/SM Dictate Station

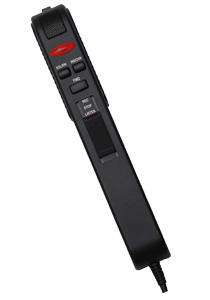

HS-101R Hand Microphone
12v A/C Adapter
Product Manual
Dimensions
7.75" tall x 8" wide x 2" deep
Emulation Options
C-Phone
DVI
DVI-2
Lanier
Voice Solutions
Emulation Help
The emulation you choose for your telephony station determines what tones are produced from certain functions. Most digital dictation systems allow you to modify what function corresponds with a tone. However, with some systems you will need to have a station that matches the tones and functions already configured. Or perhaps you simply want to match the emulation of previous stations for consistency.
To illustrate what different emulations do, let's say a particular station has a Play button. One emulation may send a 1 for its tone. Whereas another may send a 3. The emulation is based on the station's chipset and therefore cannot be changed.
C-Phone Emulation
| Processor |
Record |
Rewind |
Play |
Stop |
New Job |
Priority |
F.Fwd |
| L403-2 |
D |
7 |
B |
B |
8 |
6 |
4 |
DVI Emulation
| Processor |
Record |
Rewind |
Play |
Stop |
New Job |
Priority |
F.Fwd |
| L203-2 |
D |
B |
3 |
A |
*9 |
*8 |
4 |
DVI-2 Emulation
| Processor |
Record |
Rewind |
Play |
Stop |
New Job |
Priority |
F.Fwd |
| L603-2 |
2 |
B |
3 |
A |
*9 |
*8 |
4 |
Lanier Emulation
| Processor |
Record |
Rewind |
Play |
Stop |
New Job |
Priority |
F.Fwd |
| L503-2 |
2 |
3 |
1 |
4 |
5 |
*7 |
7 |
Voice Solutions Emulation
| Processor |
Record |
Rewind |
Play |
Stop |
New Job |
Priority |
F.Fwd |
| L303-2 |
D |
B |
C |
A |
** |
*8 |
4 |
